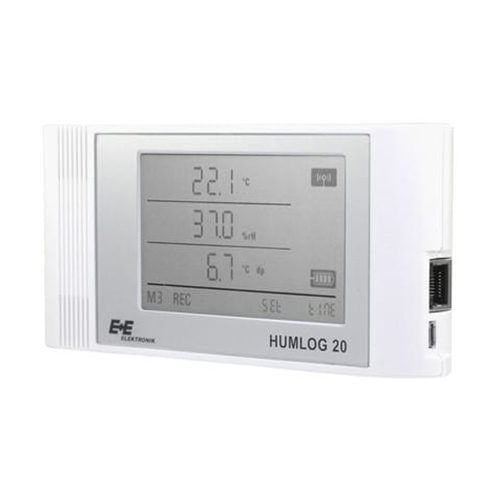

The HUMLOG20 data logger is ideally suited for climate monitoring in a wide range of applications such as:
Residential and commercial building automation
Museums and exhibition halls
Clean roomsStorage areas
Computing centres, Switching cabinets
Calibration laboratories
Key features
Continuous data recording over long periods owing to the long battery life and the large data memory.
The data loggers can operate in an Ethernet network. The measured data is available in real time and it can be displayed and saved simultaneously on a computer.
Maximum reliability of measurement data transmission is guaranteed by the integrated Ethernet interface.
Easy evaluation and visualisation of measurement data. The powerful SmartGraph3 software is included in the scope of supply.
Local visual and acoustic alarms for fast decisions in the field.
Specially designed for HVAC, the EE160 by E+E Elektronik is a cost-effective, highly accurate transmitter for relative humidity and temperature.
With encapsulated measurement electronics inside the sensing probe and E+E proprietary coating protection of the humidity sensor, EE160 offer outstanding long term stability and reliability.
Key features
Wall and duct mount versions
Voltage and current outputs freely configurable and scaleable
Certified BACnet MS/TP or Modbus RTU, user configurable
EE310 is optimized for reliable measurement in demanding industrial applications. In addition to highly accurate measurement of relative humidity and temperature, the transmitter also calculates parameters such as dew point, absolute humidity and mixing ratio.
Various models are available including wall, duct and remote probe. The remote probe can be used up to 180 °C (356 °F) and the pressure tight probe up to 20 bar (290 psi). The design of the enclosure allows easy mounting and maintenance of the unit. EE310 is available with IP65 polycarbonate or stainless steel enclosure. Measured values are available on two analog outputs and on the optional digital interface RS485 with Modbus RTU or Ethernet with Modbus TCP.
The state of the art TFT colour display shows up to four measurands simultaneously and offers extensive error diagnostics. The integrated data logging function saves all measured and calculated values. The data can be displayed as graph directly on the device or easily downloaded via USB Interface.
An optional relay module can be used for alarms and process control. The E+E proprietary coating protects the sensor elements against corrosive and electrically conductive pollution. Outputs can be freely configured and a humidity and temperature adjustment performed directly via display or with the free EE-PCS software via the USB service interface.
Key Features
Highest measurement accuracy
Wide working temperature range
Calculation of all humidity related physical quantities
TFT colour display with push buttons
Integrated data logging for 20.000 values per measurand
Error self diagnosis shown on display or via error LEDs
Auditive and visual error warnings
Two analogue outputs
Digital interface RS485 with Modbus RTU or Ethernet with Modbus TCP
Rugged polycarbonate IP65 or stainless steel enclosure
Modular enclosure concept for easy mounting and service
Pressure tight probe up to 20 bar (290 psi)
Pluggable probe for fast exchange and easy installation
Power supply module for 100...240 VAC
Two freely configurable alarm outputs
Proprietary sensor coating for polluted environment
Easy field adjustment and configuration via display or free software
